CPC Evacuated Tube Solar Thermal Collectors



How it works
  • Water, or another heat transfer fluid is slowly pumped through the solar collector and is heated by the sun.
  • Hot water is typically used to heat a building, provide domestic hot water, or provide industrial process heat.
  • An insulated water storage tank is typically used to store energy for night use or cloudy days.
About the technology

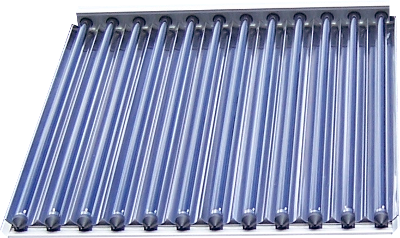

  • Collector is made of a glass vacuum tube with an aluminum cylinder inside.
  • Light passes through the first layer of glass, through the vacuum, and is then absorbed upon a specialized coating on the second layer of glass, converting the solar energy into heat energy.
  • Heat is then conducted from the second layer of glass, to the aluminum cylinder.
  • Inside the aluminum cylinder is a copper pipe. Water flows through the copper pipe absorbing thermal energy.
  • Behind the glass tube is a compound parabolic concentrating (CPC) reflector, an advanced mirror that concentrates light onto the absorber surface.
  • This configuration offers a high gross collector efficiency in a compact, non-tracking solar thermal collector.
